MOBILE WOOD CHIPPER

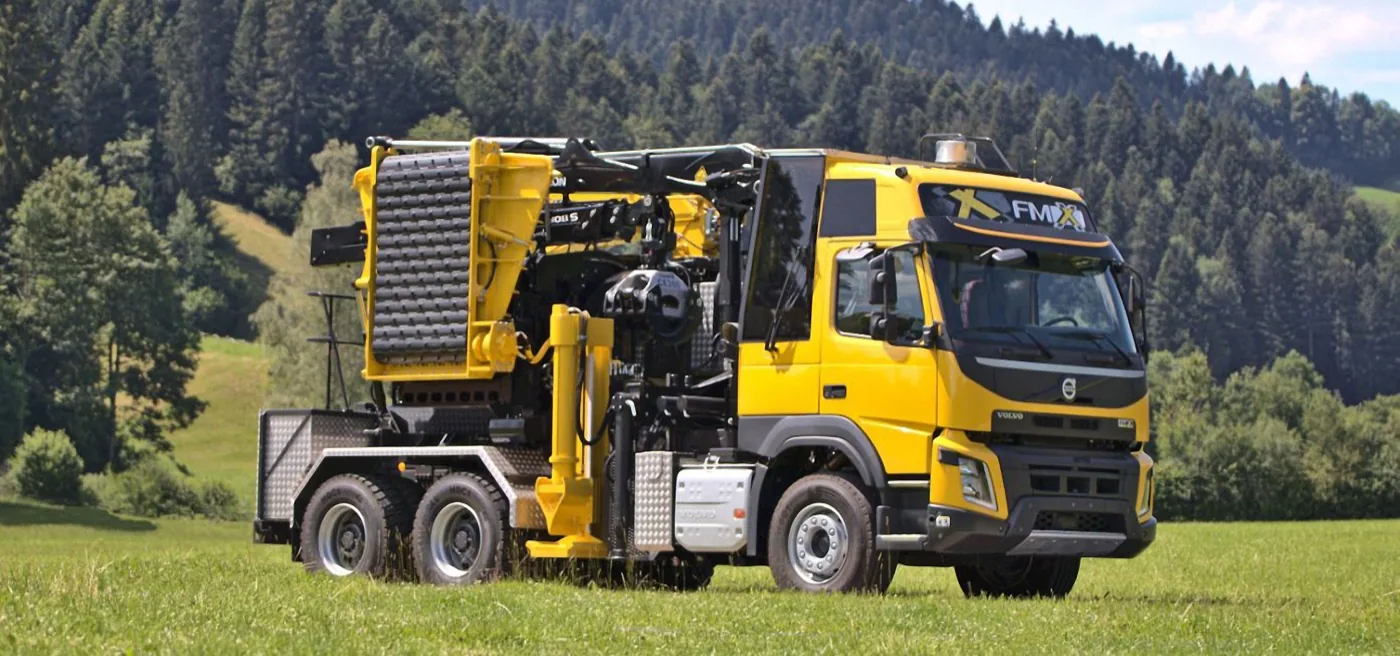

Wüst SMC-812 TCR
The SMC-812 TCR chipping unit is built for high chipping performance in a compact, versatile package. Official information highlights processing of trunk wood, branches and crown material, hardwood capacity up to 80 cm, cutting length adjustment and service-friendly knife and sieve access.
Get information
MACHINE DETAILS
Key information
- Infeed size: 120 x 80 cm
- Drive power: 540 hp
- Cutting length: 15 to 45 mm
- Chainless drive
- Hydraulic blower discharge
- Top workstation for rotor maintenance
PRODUCT OVERVIEW
How it fits the operation
SMC-812 TCR is part of the Wüst Hacker SMC-812 machine family for professional wood chipping. The family is built around a high-capacity chipping unit and is configured differently depending on feeding, transport, container and drive requirements.
In a forestry or biomass workflow, the SMC-812 range is selected when chip quality, material feed, maintenance access and site logistics all matter. Smartline can compare TCR, CCL, CCR and PTO concepts according to the carrier, job type and output expectation.
APPLICATIONS
Applications
- Trunk wood, branches, crown material and residual forestry material.
- Forestry contractors and biomass supply operations.
- Field or site-based wood chipping depending on configuration.
- Operations that need consistent chip quality with professional throughput.
TECHNOLOGY
Technology
- SMC-812 chipping unit with large infeed concept.
- Cutting length concept from 15 mm to 45 mm depending on setup.
- Chainless drive and service-friendly rotor, knife and sieve access on key configurations.
- Configuration choices include crane-fed, container-based and PTO-driven workflows.
OPERATIONAL FIT
Operational fit
- Best when Wüst chip quality and machine configuration flexibility are both important.
- TCR is suitable for crane-fed mobile workflows; PTO suits powerful tractor-based operation.
- CCL and CCR support container-style logistics and positioning needs.
- Smartline can help choose configuration before price, delivery and technical matching discussions.
TECHNICAL SPECIFICATIONS
Wüst SMC-812 TCR
Core machine and system details for evaluating the right Smartline configuration for the operation.
Technical data
- SMC-812 chipping unit for high chipping performance with compact structure and broad use range.
- Infeed size 120 x 80 cm; rotor diameter 950 mm.
- Cutting length adjustable 15-45 mm; chip size adjustable G10-G50.
- 6 knives, 200 mm; max hardwood diameter 60 cm and max softwood diameter 80 cm.
- Chippertruck data: throughput up to 280 m3/h, consumption 0.4-0.6 l/m3, ejection range up to 35 m, output 540 HP / 397 kW and speed 80 km/h.
CATALOG & SOURCE
Catalog and product information
Use these documents and product pages when a deeper technical review is needed.
GALLERY

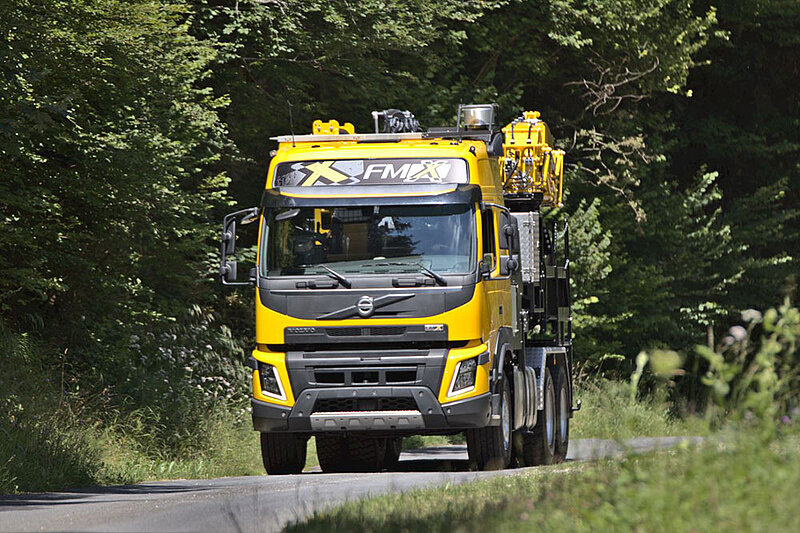

Product photos
