TILT-GRAPPLE SAW

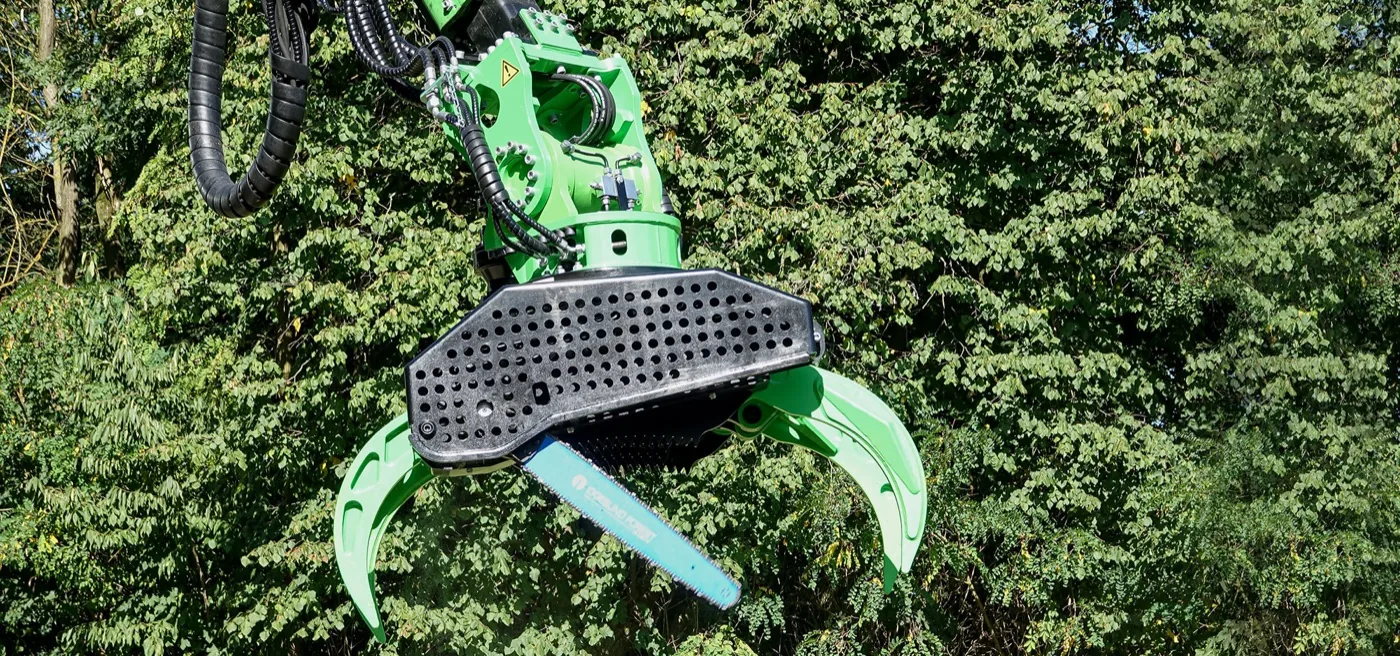

Albach TFZ 90 360°
The TFZ 90 360° Tilt-Grapple Saw adds a specialized cutting and handling tool to the Albach forestry range. It is intended for forestry teams that need controlled gripping, flexible positioning and precise cutting in one workflow.
Get information
MACHINE DETAILS
Key information
- Tilt-grapple saw for forestry handling and cutting
- 360-degree positioning concept
- Supports controlled gripping before and after cutting
- Suited to professional felling, sorting and processing support
PRODUCT OVERVIEW
How it fits the operation
TFZ 90 360° is a tilt-grapple saw for forestry teams that need gripping, positioning and cutting in one controlled workflow.
It supports targeted cutting and handling before processing, helping operators work more precisely around felling, sorting and field preparation.
APPLICATIONS
Applications
- Tree cutting, gripping and positioning tasks.
- Forestry preparation work before chipping or transport.
- Jobs where controlled handling reduces manual intervention.
- Operations needing flexible attachment-based forestry tools.
TECHNOLOGY
Technology
- Tilt-grapple saw concept with 360-degree positioning.
- Combines grip, position and cut operations.
- Designed for forestry handling support.
- Configuration should be matched to hydraulic and carrier requirements.
OPERATIONAL FIT
Operational fit
- Best for operators wanting more control at the cutting stage.
- Useful for selective handling and preparation work.
- Complements felling crane and mobile chipper workflows.
- Smartline can present it as a productivity and safety-support tool.
TECHNICAL SPECIFICATIONS
Albach TFZ 90 360°
Core machine and system details for evaluating the right Smartline configuration for the operation.
Technical data
- TFZ 90 360° tilt-grapple saw developed by Bachmaier Landtechnik and listed by Albach.
- Designed for Sennebogen 718 handling excavator; handles log diameters up to 700 mm.
- Blade length 900 mm; max grab opening 1870 mm; minimum trunk diameter about 110 mm.
- Tilt motor torque up to 20,000 Nm at 250 bar, holding torque 34,000 Nm and tilt range 195°.
- 360° endless rotating swivel drive with max torque 27,000 Nm and static holding brake; hydraulic chain tensioning and grease lubrication.
CATALOG & SOURCE
Catalog and product information
Use these documents and product pages when a deeper technical review is needed.
GALLERY

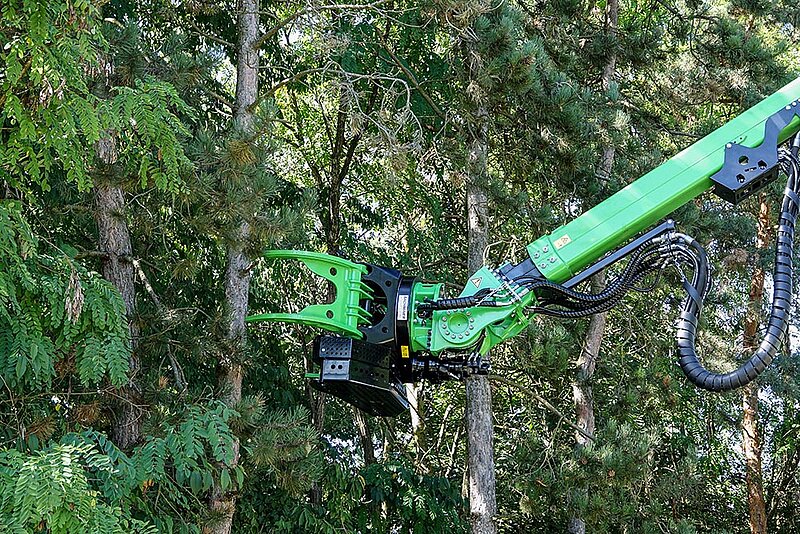

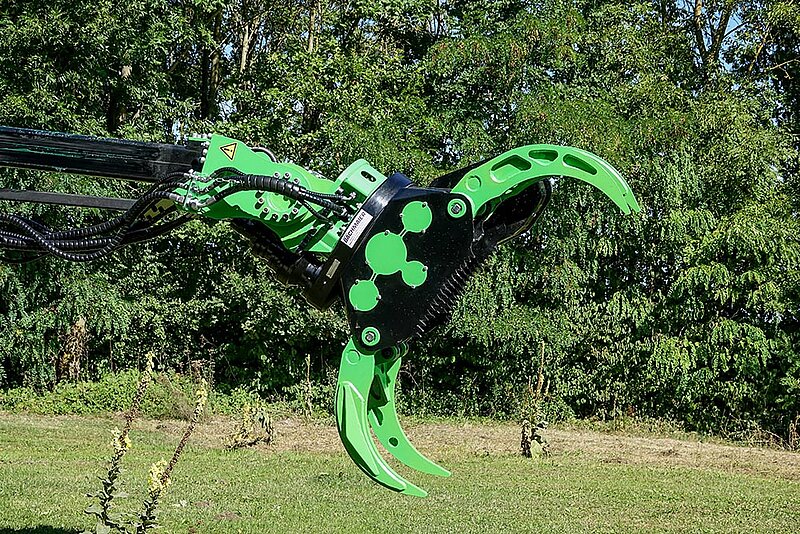

Product photos
