COMPACT TWIN-SHAFT SHREDDER

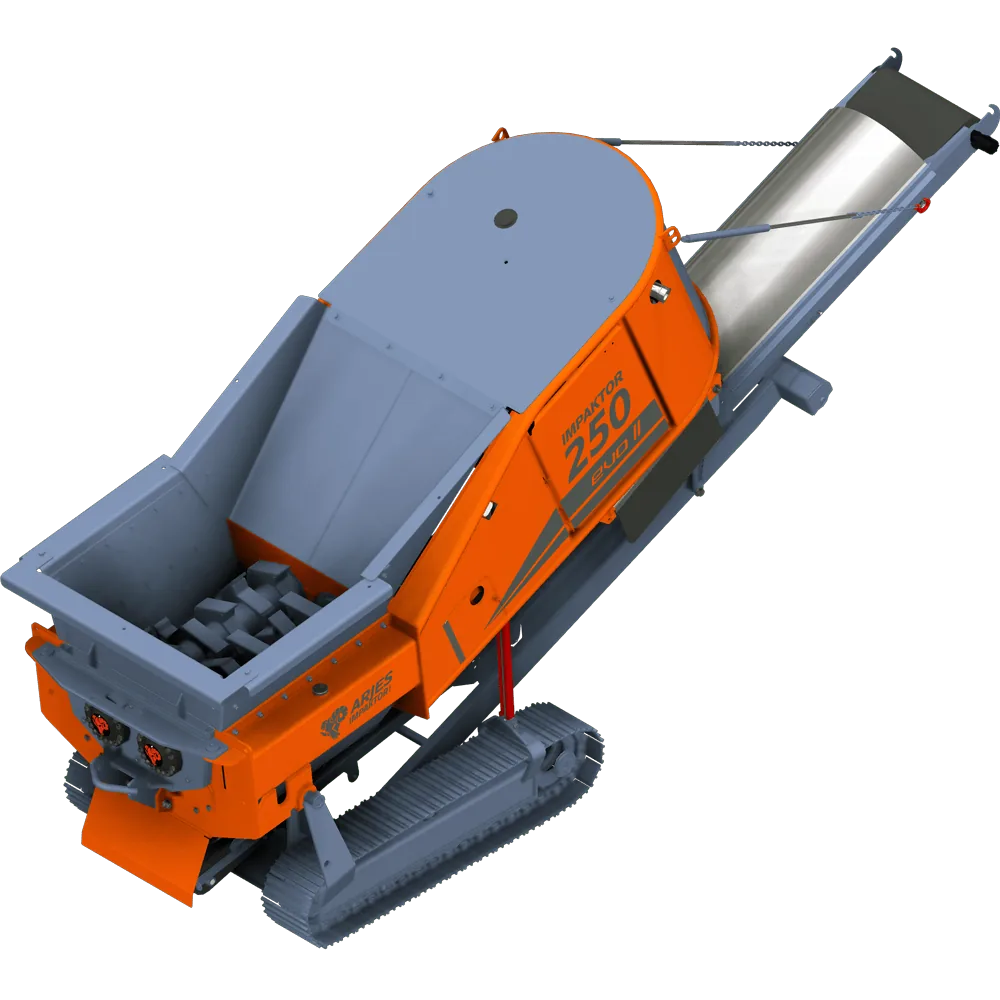

Arjes IMPAKTOR 250 EVO II
The IMPAKTOR 250 EVO II is the compact entry point of the ARJES IMPAKTOR range. It is intended for mobile recycling teams that need a small-footprint shredder for construction and demolition waste, waste wood, biomass and mixed material streams.
Get information
MACHINE DETAILS
Key information
- Compact mobile shredder concept
- Two-shaft shredding system
- Applications include construction waste, waste wood, biomass and mixed waste
- Available in the broader 250 family with diesel and electric EVO concepts

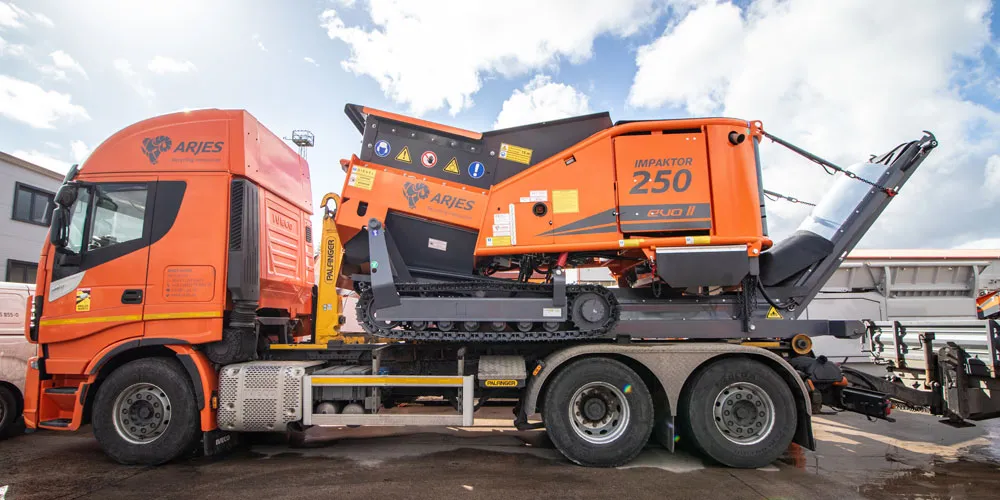

- Practical transport position for site-to-site work
PRODUCT OVERVIEW
How it fits the operation
IMPAKTOR 250 EVO II is the compact entry of the IMPAKTOR family at around 13,400 kg with a Volvo Penta 129 kW engine. It is built for mobile contractor crews moving the machine between construction sites, demolition lots and small recycling yards.
This model belongs in compact and mobile recycling workflows where quick setup, site movement and flexible material handling are part of the daily operation.
APPLICATIONS
Applications
- Compact mobile contractor work where the machine moves between sites.
- Construction and demolition waste plus rebar-light concrete reduction.
- Waste wood, railway sleepers, rhizomes and biomass volume reduction.
- Small-yard plastic, household and commercial waste pre-shredding.
TECHNOLOGY
Technology
- Twin-shaft shredding principle for robust material reduction.
- Material-specific shaft and screen-basket concepts depending on application.
- Service and transport layouts designed for operational practicality.
- Official catalog data should be used for final engine, weight, capacity and transport dimensions.
OPERATIONAL FIT
Operational fit
- Best when site mobility, hook-lift transport and quick setup matter more than peak throughput.
- Useful as a single-machine entry into mechanised recycling for contractors leaving manual demolition behind.
- Pairs well with track or hook-lift transport for crews servicing several sites in a week.
- Smartline can position it against the 350 EVO II when a step up in capacity is being considered.
TECHNICAL SPECIFICATIONS
Arjes IMPAKTOR 250 EVO II
Core machine and system details for evaluating the right Smartline configuration for the operation.
Technical data
- Mobile twin-shaft shredder with track system and hook-lift version; total weight 13,400 kg.
- Dimensions: 7,700 / 7,300 mm length, 2,300 / 2,300 mm width and 3,900 / 2,550 mm height in work/transport data.
- Volvo Penta TAD 551 VE engine, Stage III A, 129 kW / 175 HP; fuel capacity 300 l.
- Discharge height 3,200 mm, discharge belt width 800 mm; overbelt magnet and water sprinkler system included.
- Shredding unit: hopper volume 2.25 m3, shaft length 1,500 mm, shaft diameter 680 mm, cassette weight 1,800 kg, rotation speed 11-35 rpm.
CATALOG & SOURCE
Catalog and product information
Use these documents and product pages when a deeper technical review is needed.
GALLERY
Product photos
