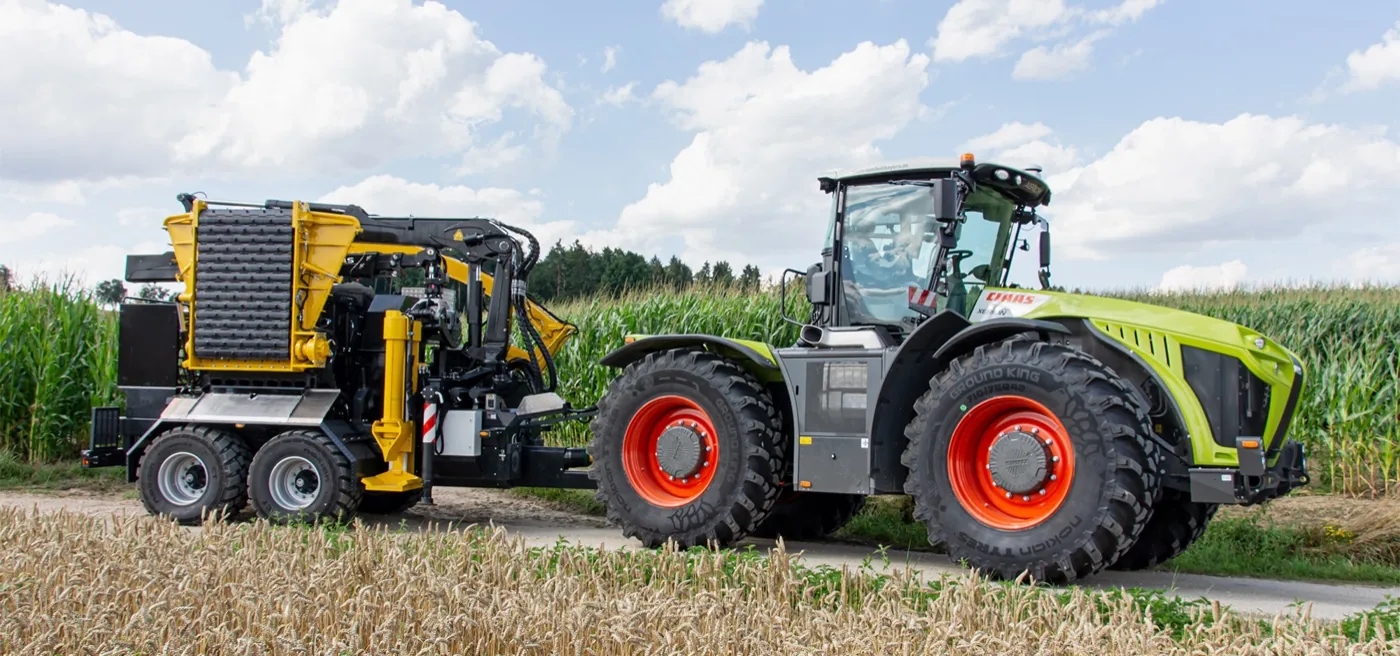

Wüst SMC-812 PTO
The SMC-812 PTO is a PTO shaft chipper for powerful tractor-based applications. It is positioned for universal field use, robust continuous operation and precise chip quality with low fines content.
Get information
MACHINE DETAILS
Key information
- PTO shaft chipper configuration
- Power requirement from 350 hp
- Infeed size: 120 x 80 cm
- Cutting length: 15 to 45 mm
- Own oil supply and independent on-board electronics
- Precise chipping with low fines content
PRODUCT OVERVIEW
How it fits the operation
SMC-812 PTO is part of the Wüst Hacker SMC-812 machine family for professional wood chipping. The family is built around a high-capacity chipping unit and is configured differently depending on feeding, transport, container and drive requirements.
In a forestry or biomass workflow, the SMC-812 range is selected when chip quality, material feed, maintenance access and site logistics all matter. Smartline can compare TCR, CCL, CCR and PTO concepts according to the carrier, job type and output expectation.
APPLICATIONS
Applications
- Trunk wood, branches, crown material and residual forestry material.
- Forestry contractors and biomass supply operations.
- Field or site-based wood chipping depending on configuration.
- Operations that need consistent chip quality with professional throughput.
TECHNOLOGY
Technology
- SMC-812 chipping unit with large infeed concept.
- Cutting length concept from 15 mm to 45 mm depending on setup.
- Chainless drive and service-friendly rotor, knife and sieve access on key configurations.
- Configuration choices include crane-fed, container-based and PTO-driven workflows.
OPERATIONAL FIT
Operational fit
- Best when Wüst chip quality and machine configuration flexibility are both important.
- TCR is suitable for crane-fed mobile workflows; PTO suits powerful tractor-based operation.
- CCL and CCR support container-style logistics and positioning needs.
- Smartline can help choose configuration before price, delivery and technical matching discussions.
TECHNICAL SPECIFICATIONS
Wüst SMC-812 PTO
Core machine and system details for evaluating the right Smartline configuration for the operation.
Technical data
- PTO-driven SMC-812 configuration for tractor-based chipping.
- Infeed size 120 x 80 cm; rotor diameter 950 mm; cutting length adjustable 15-45 mm.
- 6 knives of 200 mm; max hardwood 60 cm and max softwood 80 cm.
- PTO data: throughput up to 280 m3/h, consumption 0.5-0.8 l/m3 depending on tractor, ejection range up to 35 m.
- Drive power requirement listed by Wüst as greater than 250 PS; road speed 60 km/h.
