HIGH-PRODUCTIVITY SLITTING

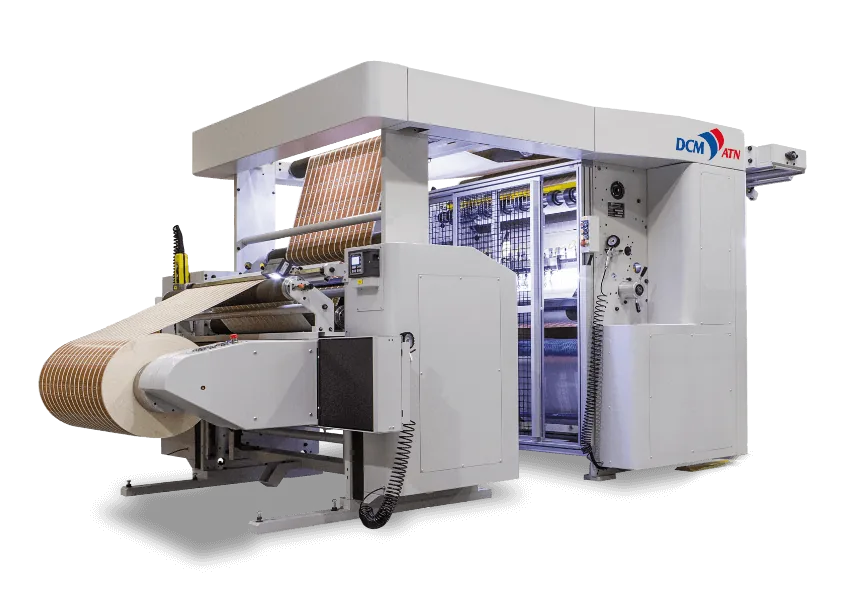

DCM TIGRE
TIGRE is part of DCM's high-productivity slitting and rewinding offer. It gives packaging converters another option when the main requirement is a faster converting flow without losing control over winding quality and production repeatability.
Get information
MACHINE DETAILS
Key information
- High-productivity slitter rewinder concept
- Flexible packaging converting application
- Focused on throughput, repeatability and roll quality
- Designed for plants scaling their slitting capacity
PRODUCT OVERVIEW
How it fits the operation
TIGRE is the high-productivity direction in DCM slitting and rewinding, intended for converters that need stronger throughput without losing control of winding quality.
It belongs in production environments where slitting is no longer a secondary finishing step but a central capacity point for the plant.
APPLICATIONS
Applications
- High-volume flexible packaging converting.
- Longer production runs where uptime and fast handling matter.
- Plants with multiple upstream lines feeding the slitting department.
- Converters measuring slitting performance as a capacity and delivery constraint.
TECHNOLOGY
Technology
- High-productivity slitter rewinder platform.
- Designed for stable roll handling at stronger output levels.
- Configuration depends on material type, parent reel dimensions and finished-roll expectations.
- Can be paired with plant planning and inspection workflows for better control.
OPERATIONAL FIT
Operational fit
- Best when slitting capacity is limiting delivery performance.
- Useful where roll quality, speed and operator workflow all need attention.
- A good Smartline discussion point for capacity planning.
- Can be evaluated together with SERVAL / PANTHERE / SUPER TIGRE as a range choice.
TECHNICAL SPECIFICATIONS
DCM TIGRE
Core machine and system details for evaluating the right Smartline configuration for the operation.
Technical data
- Automatic double turret slitter rewinder with four rewinding shafts for high productivity.
- Mother reel width 1000 / 1400 / 1600 mm; mother reel weight up to 3000 kg.
- Mother reel max diameter 1000 to 1800 mm; minimum standard slit 20 mm.
- Rewind reel maximum diameter 610 / 800 mm; maximum production speed 600 / 800 m/min.
- Double turret concept with downtime between cycles under 30 seconds; 4 differential or pneumatic rewinding shafts; 5 or 6 motors.
CATALOG & SOURCE
Catalog and product information
Use these documents and product pages when a deeper technical review is needed.
GALLERY
Product photos
