REWINDING INSPECTION

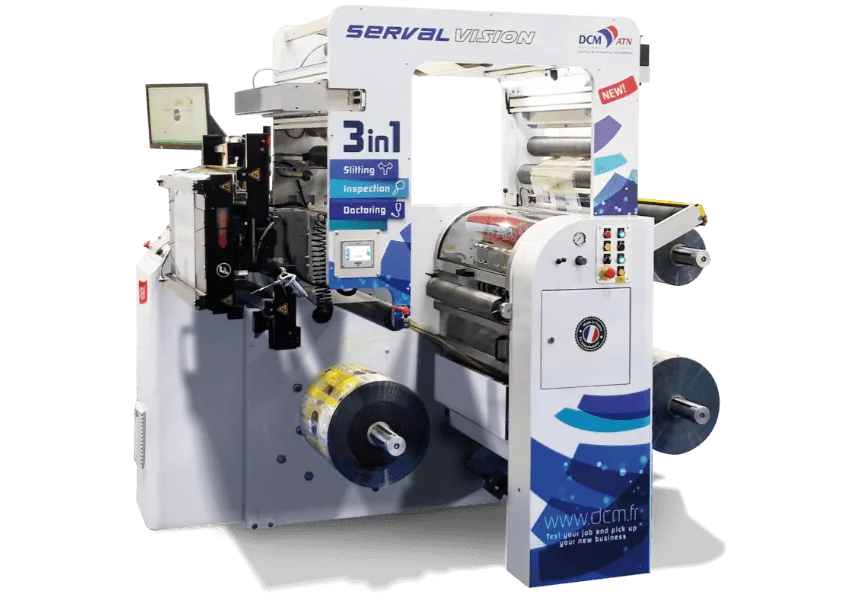

DCM SERVAL VISION
SERVAL VISION connects rewinding with inspection logic for packaging converters. It is useful where quality control should be part of the roll-handling workflow rather than a late, disconnected check.
Get information
MACHINE DETAILS
Key information
- Rewinding and inspection machine concept
- Designed for packaging roll quality workflows
- Supports inspection-led converting control
- Fits plants optimizing defects, rework and final release
PRODUCT OVERVIEW
How it fits the operation
SERVAL VISION brings rewinding and inspection into the same quality-control conversation. It is not only about moving rolls; it is about catching defects and making release decisions closer to the process.
The machine fits plants where quality review, defect mapping, rework and final release need to be connected to the roll workflow instead of being handled late or manually.
APPLICATIONS
Applications
- Rewinding inspection for printed packaging rolls.
- Quality control after printing, laminating or converting processes.
- Defect review, rework preparation and release-support workflows.
- Plants that need stronger inspection discipline before final delivery.
TECHNOLOGY
Technology
- Rewinding inspection machine concept.
- Supports inspection-led roll handling.
- Can be discussed around camera, defect workflow and operator review needs.
- Works naturally with digital inspection and quality systems.
OPERATIONAL FIT
Operational fit
- Best when print defects or late quality decisions create waste and rework.
- Useful between converting and final shipment.
- Can connect machine-side inspection with management reporting.
- Smartline can position it with GlobalVision for a stronger quality ecosystem.
TECHNICAL SPECIFICATIONS
DCM SERVAL VISION
Core machine and system details for evaluating the right Smartline configuration for the operation.
Technical data
- Multi-task inspection/doctoring slitter rewinder combining slitting, inspection and dual-way inspection/doctoring of reels.
- Mother reel maximum width 820 mm; mother reel maximum weight 350 / 500 kg.
- Mother reel maximum diameter 610 / 810 mm; standard minimum slit 25 mm.
- Rewinding reel max diameter 610 mm; maximum production speed 500 m/min.
- Options include 100% camera, stroboscope and marking/labeling; machine includes double web guide and automatic web tension control.
